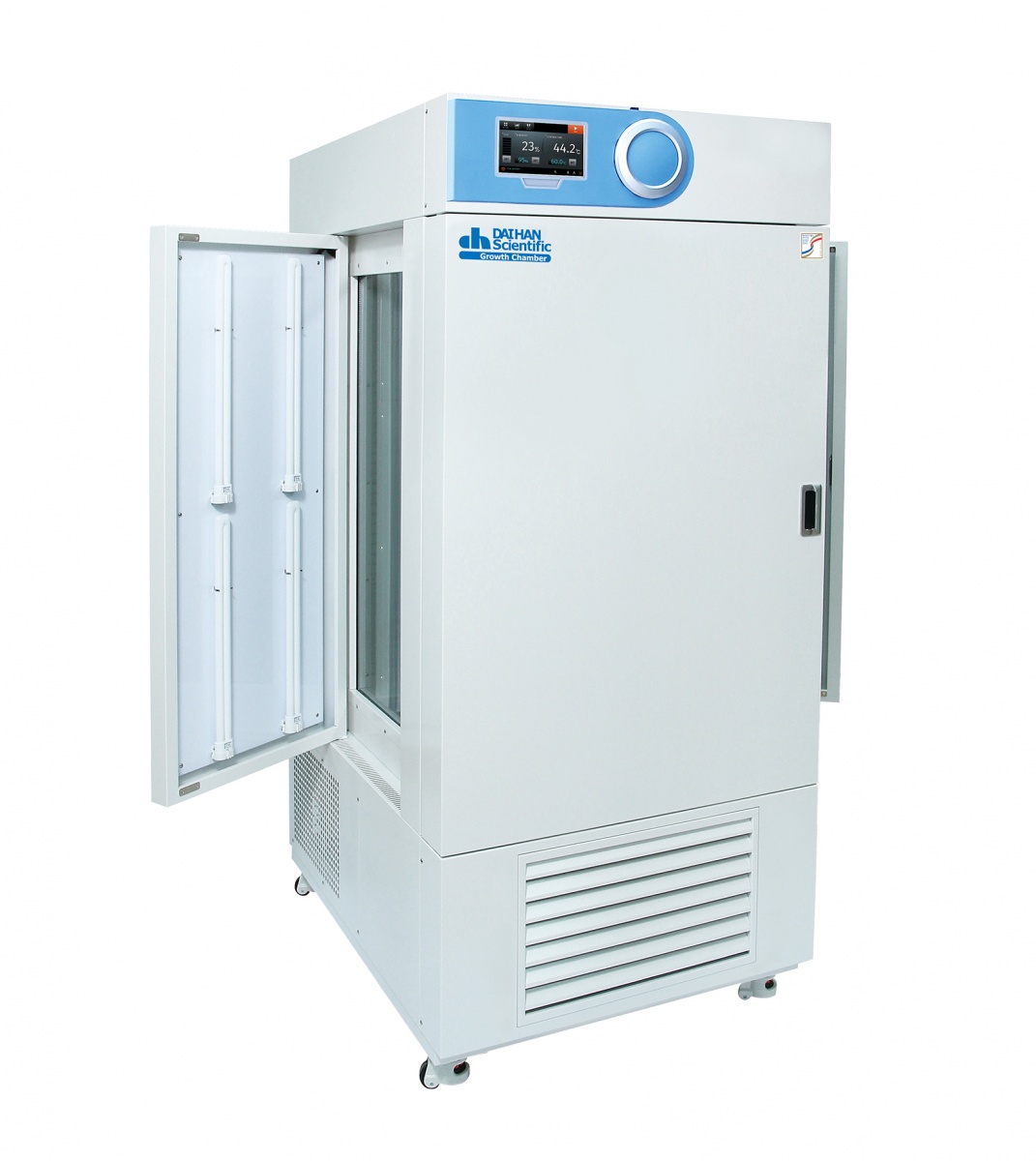

| Models | ThermoStable GC-1000 | |||
| Capacity | 864 Lit. | |||
|
|
Range & Variation | 10℃ ~ 60℃, ±1℃ at 20℃ | ||
| Fluctuation | ± 0.5℃ at 10℃, ± 0.5℃ at 25℃ (0% light intensity)
± 1℃ at 10℃, ± 1℃ at 25℃ (100% light intensity) |
|||
|
Humidity |
Range & Variation | 30% ~ 95% RH, ±3% at 60℃ | ||
| Fluctuation | ±1% | |||
| Humidifier | Evaporation by Fan with Heater | |||
|
Illumination |
Range | 0 to 15,000 Lux | ||
| Lamp | FPL 55W×28 | |||
| Bank | 3 Side Walls & Ceiling | |||
| Temp. & Humidity Sensor | Temp. : PT100, Humidity : Capacitive Sensor | |||
| Heat-up Time (up to 37℃) | 11 min. (0 % illumination) / 9 min. (100 % illumination) | |||
| Cool-down Time (down to 10℃) | 13 min. (0 % illumination) / 15 min. (100 % illumination) | |||
| Temp. Recovery
(After Door was opened for 30sec) |
3 min. at 10℃, 1 min. at 37℃ (0 % illumination)
5 min. at 10℃, 1min. at 37℃ (100 % illumination) |
|||
| Heating Power
/Consumption |
for Temp. | 3.0 kW | ||
| for Humi. | 3.0 kW | |||
| Compressor | 1HP | |||
| Refrigerant | CFC-Free(R-404A) Refrigeration System | |||
| Display | 7″Full Touch Screen TFT LCD (Smart-LabTM Controller) | |||
| Controller | Smart-LabTM Controller | |||
| Program Function | Temperature and Humidity : 120 Patterns, 1,200 Segments Light Bank : 7 steps | |||
| Door | Internal | Tempered Safety Glass with Silicon Packing | ||
| External | 3-Side Magnetic Packing Door with Light Bank | |||
| Shelves | 8 Teflon Coated steel Shelves | |||
| Permitted Total Load | 128 kg (16kg×8 Shelves) | |||
| Safety Circuit | Over Temp Protector, Over Current & Leakage Breaker | |||
| Material | Internal : Stainless steel (＃304), External : Power Coated steel | |||
| Dimension (w×d ×h) | Interior (mm) | 1,200×790×1,050 | ||
| Exterior (mm) | 1,400×1,150×1,965 | |||
| Packing Size & Gross Weight | 1,600×1,500×h2,200mm,
585 kg |
|||
| Power Consumption | 6.5 kW | |||
|
Power Supply� |
1 Phase – AC 230V, 50/60Hz
3 Phase – AC 380V, 50/60Hz |
|||
